دستهبندی: اَسنوِر ASENWARE
مجهز به پردازنده داخلی:✔
جهت پردازش هوای ورودی:✔
جبران دما، رطوبت و گرد و غبار:✔
عملکرد تشخیص عیب سنسور:✔

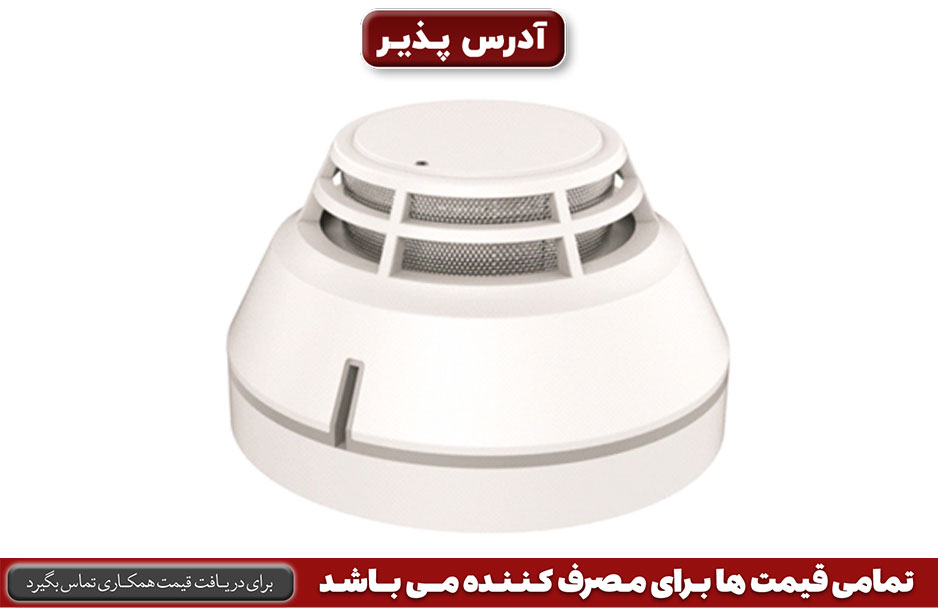

دتکتور دودی - نوری آدرس پذیر اسنور AW-D301
Asenware AW-D301
برند:اسنور
مشخصات
مجهز به پردازنده داخلی
✔
جهت پردازش هوای ورودی
✔
جبران دما، رطوبت و گرد و غبار
✔
عملکرد تشخیص عیب سنسور
✔
مطابق با استاندارد EN54-7
✔
توضیحات
| Operating Voltage | Loop 24V(18V～28V) |
| Standby Current | ＜0.3mA |
| Alarm Current | ＜1.5mA (without remote indicator) ＜3.5mA (with remote indicator) |
| Fire LED | Red, Flash in polling, and illuminate in alarming. |
| Remote indicator output | Polarity-sensitive output, directly connect to remote indicator (built in 10k resistor in series, max. output current is 2mA); The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| Programming | Electronically addressed. |
| Programming Range | Occupying one address within 1～324. |
| Wiring | Loop: two wire, polarity-insensitive |
| Environmental Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension | Diameter: 100mm Height: 58mm (with the base) |
| Mounting Hole Distance | 44.5mm～64.3mm |
| Weight | About 128g(with base) |
| Operating Voltage | Loop 24V(18V～28V) |
نظرات
